PowerPoint Picture Tools to Create Magnifier Glass Effects

2 Mins read

Learn a new PowerPoint trick using picture tools: Magnifier

Case Study: Let’s say my company has launched a new water dispenser. I would like to highlight the new features of the product. To do so, I will like to use a magnifier like an effect to attract the viewers attention (Picture tools). This is a special PowerPoint trick.

In one of the earlier blogs, we saw how to create them in Microsoft PowerPoint version 2007. The process was a tad slow. Let’s see how to create it faster in Microsoft PowerPoint version 2010 onwards.

      1. Choose the picture. Press PowerPoint shortcut key “CTRL+D” to create a copy or a Duplicate of the Image:shortcut-key-to-create-duplicates-while-using-Picture-tools
      2. Choose the Duplicate Image:

      3. Go to “FORMAT” tab that appears on the PowerPoint Ribbon
      4. Locate “CROP” button. Click on the drop down of that button
      5. Under “CROP” button, Select “CROP TO SHAPE” and choose Oval shape. This chooses the geometrical shape in which the magnifier will be molded. This feature is available in PowerPoint version 2010 onwards
        This step puts the picture in the mold of an oval boundary. You will be able to see it if the background colour is contrasting.Picture-tools-choose-image-and-crop-image-in-an-oval-shape
  1. Keep the Duplicate Picture Chosen.
  2. Now, go to “FORMAT
  3. Choose “CROP” option from the drop down menu again
  4. This time, Click on “CROP” sub-option from “CROP” main button
  5. You will see the picture in an Oval shape. It is surrounded by gray shaded area. The edges will show black clip like icons:
  6. Now place your cursor close to black clip like icons. You can hold it and resize the crop area.
  7. Adjust the size to be able to focus on the desired part of the duplicate picture.
  8. Try to keep the circle formation:Picture-tools-to-create-magnifier-using-crop
  9. Click anywhere outside the image boundary. This will yield the cropped part in a circular shape. This is called a Magnifier and the effect it produces is known as the magnifying glass effect which is used by BMW & Cairn India:Pictur-tools-to-use-picture-effects-1024x675
  10. Now, you can apply some Picture effects to make it attractive.
  11. Keep the Magnifier chosen. Go to “FORMAT” tab of picture tools.
  13. Select “PRESET” and then click on “PRESET 1”.
  14. Now this picture effect has been applied on the MagnifierPicture-tools-to-use-magnifier
  15. You can put the Magnifier on top of the original image. Position it such that it is placed above the tap.
  16. You can increase the size without disturbing the dimensions. Keep Shift key pressed and use the corner points to stretch it outwards.Picture-tools-with-lock-aspect-ratio
  17. To make the Magnifier look like a perfect circle, you can make the height equal to the width. To do this, you will have to first disable “Lock Aspect Ratio”. Next step will be to make height equal to the width. Then, re-enable the “Lock Aspect Ratio
  18. Choose the Magnifier.
  19. Under “FORMAT” tab of picture tools, go to the “SIZE” group (Tiny Button at the bottom left of the group tab)
  20. Uncheck the “Lock aspect ratio
  21. Then make the height same as weight. E.g. 2”
  22. Re-enable the “Lock aspect ratio”. This ensures that the dimensions are maintained in future.Picture-tools-to-change-picture-height-and-width
  23. Now, if I change the height as 2.52; width will also change automatically to 2.52Picture-tools-to-use-magnifier-for-marketing
  24. Repeat Step 1 to 28 as above to create a magnifier for the container lid. E.g. The product’s new feature is an air tight lid.Picture-tools-to-add-picture-border
  25. To give a different effect, make the picture border white in colour.Picture-tools-to-change-picture-border-size-1024x634
  26. We will give a high weight to the border. E.g. 6 pt.

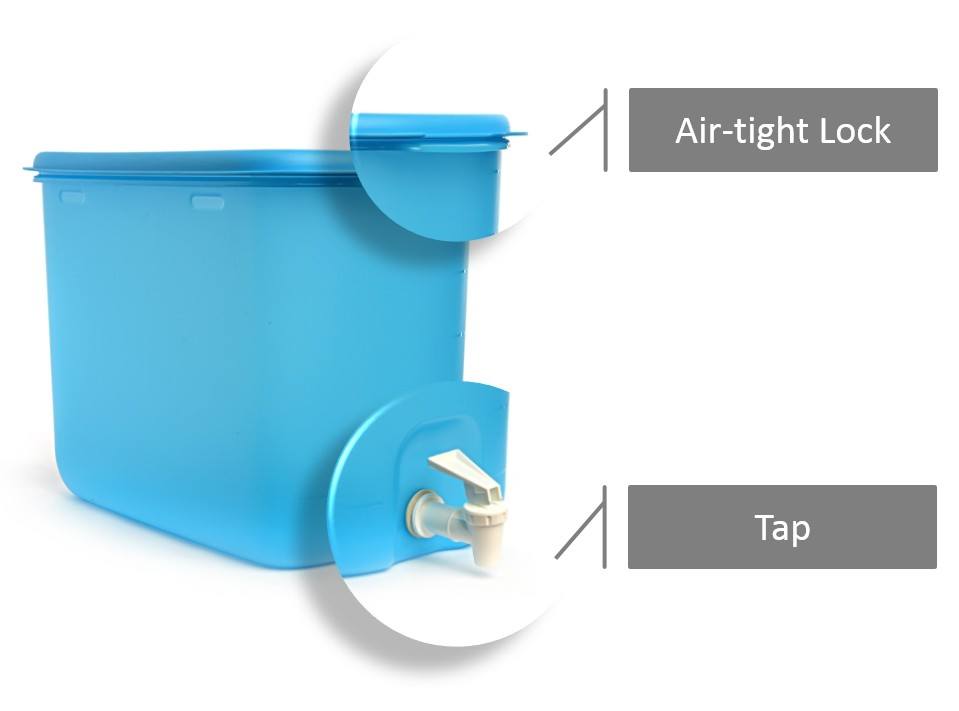

  27. Once placed on the original picture, it looks attractive.

Thus, a basic magnifier effect can be achieved within 30 seconds. It helps keep the viewers focus on a specific part(s) of the picture. Hope you loved this Special PowerPoint trick. Here is another Powerpoint trick to make your slides better in just 5 seconds using SmartArt.
